Brand Name : Headway
Max Load Quantity(cells) : 4
Cycle Life : 3000 cycles
Dimension (L*W*H) : H780 * W510 * D185 mm
Application : Home Appliances, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Home Energy Storage, Home Energy System, Solar System, Energy Storage
Model Number : H51200WM
Weight : 102KG
Operating Temperature(℃) : -10~60
Place of Origin : Zhejiang, China
Cathode Materials : LiFePO4
Nominal Voltage : 51.2V
Nominal Capacity (0.5C, 25℃) : 200Ah
Battery type : Wall Mount Lithium Battery Pack
Usage : Back-up Power
OEM/ODM : Accepatable
Size : H780 * W510 * D185 mm
Charge Current (Recommed) : 0.2C (40A)
Discharge Current (Max Continuous) : 0.5C (100A)
Warranty : 5 years

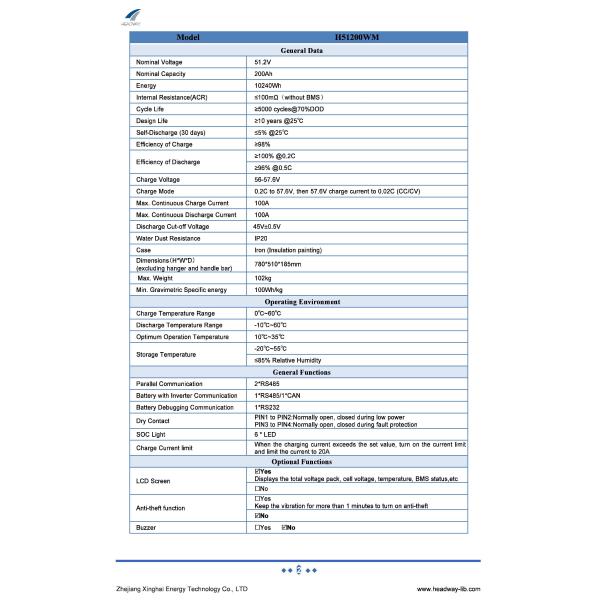

Item | H51200WM |
Rated Voltage (V) | 51.2V |
Rated Capacity (Ah) | 200AH |
Working Voltage Range (V) | 45-58.4V |
Charge current (Recommed) | 0.2C (40A) |
0.5Discharge Current (Max Continuous) | 0.5C (100A) |
Life Cycle Time | >5000 times @70%DOD |
Design Life | >10 years @25℃ |
Size (mm) | W780 * H510 * D185mm |
Weight (kg) | 102kg |
Charge temperature | 0~45℃ |
Discharge temperature | -10~55℃ |
Status Indicators | SOC/ALM/RUN |

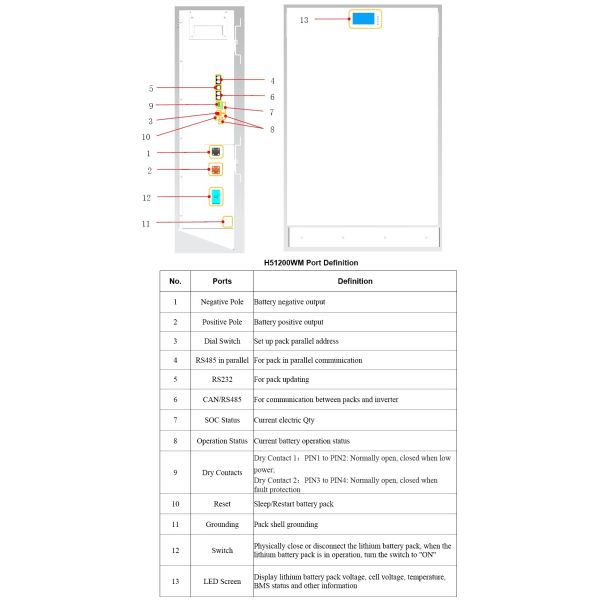

Communication Ports | RS232*1, RS485*2, CAN*1 |
Reset key | Available |
LCD Screen | Yes |
Parallel in Maximum | 15 sets |















|
|
Headway 51.2V200Ah Wall Mount Lithium Battery for Home Energy Storage System 51.2V200Ah 10KWh Lithium Battery Pack Images |
