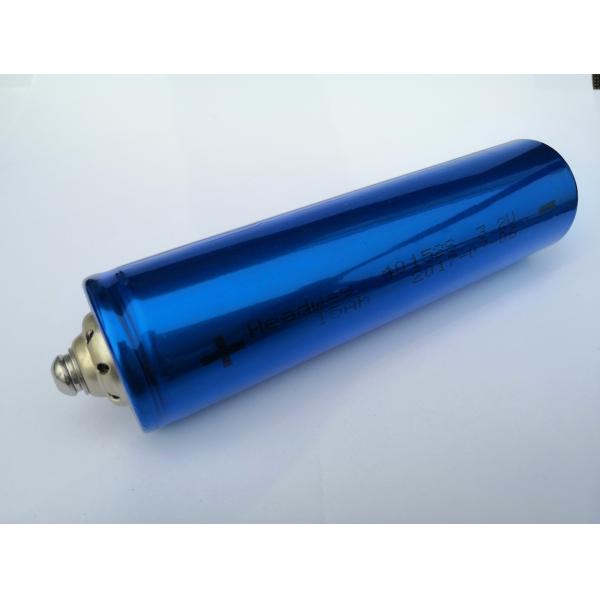

Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries

Name: Haedway Cylindrical 40152S 32V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries
Brand: Headway
Price: 1 USD

China Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries wholesale

Brand Name : Headway

Max Load Quantity(cells) : 16

Battery Type : liquid

Cycle Life : 3000 cycles

Dimension (L*W*H) : 40*152mm

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Electric For

Model Number : HW40152S

Weight : 460±5g, 460±5g

Operating Temperature(℃) : -20~60°

Place of Origin : Beijing, China

Cathode Materials : LiFePO4

Battery Size : 40152S

Nominal Voltage : 3.2V

Warranty : 12months

Cycle life : 2000 Times

Charging cut-off voltage : 3.65 ±0.05 V

Discharge cut-off voltage : 2.5 ±0.05 V

OEM/ODM : Yes(Accepted)

Color : As pictures

Battery Size- : 3.2V 17Ah

Contact Now

Product Description

Haedway Cylindrical 40152S 3.2V 17Ah Lifepo4 Rechargeable Battery Cells Electric Scooter Battery Electric Lithium Ion Batteries

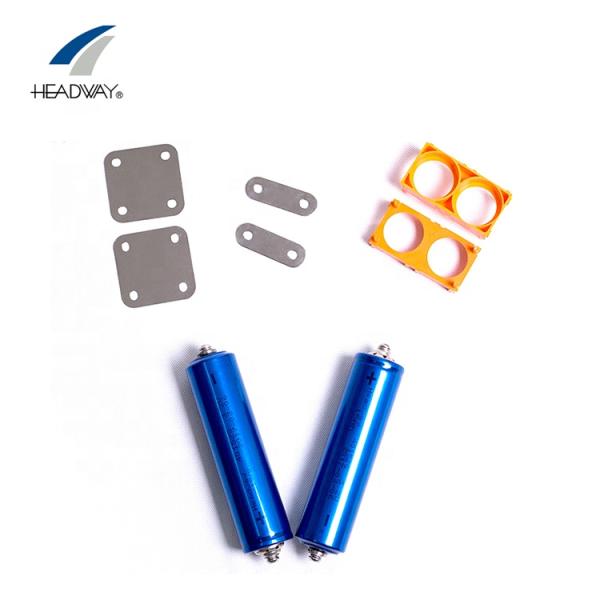

1.Our 40152S is with screws.It is convenient to connect when you are building the battery pack.
2,It is with high discharge rate and low self discharge.
3,40152S cells are widely used in electric bicycle,e-motorcycle,and e-cars.We had been the battery supplier for many manufacturers all over the world.
4,You can buy our single cells,meanwhile we can build the battery for you according to your voltage and capacity.And provide the BMS and box to youon the basis of your technical specification

Specification

Nominal Voltage	3.2V
Nominal Capacity(0.5C,25℃)	17Ah
Weight(Approximate)	480±5g
Discharging Current	Standard: 1C; Max Continuous: 3C; Instant(30S): 10C
Self-discharge rate	≤2% per month
1C/1C cycle life	≥2000 Times
Charging Current	Standard: 0.5C; Max: 2C at T≥10℃ Max: 1C at 10℃≥T≥0℃; Max: 0.1C at 0℃≥T≥-10℃
Cell Dimension	Max H: 168 mm Max Dia:41 mm
Humidity range	0～90%RH (non-condensing)
Internal resistance	≤4mOhm(AC Internal resistance 1000HZ)

Advantage

1. Steady performance
2. Super high cycle life
3. Higher energy density
4. Safety, no explosion
5. Lighter and smaller
6. No memory effect
7. Wider operation temperature
8. Higher peak power

Factory

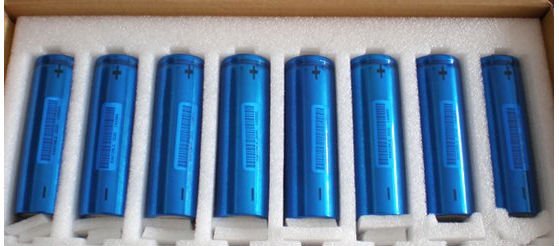

Packing & Delivery
